LAEPAWL2

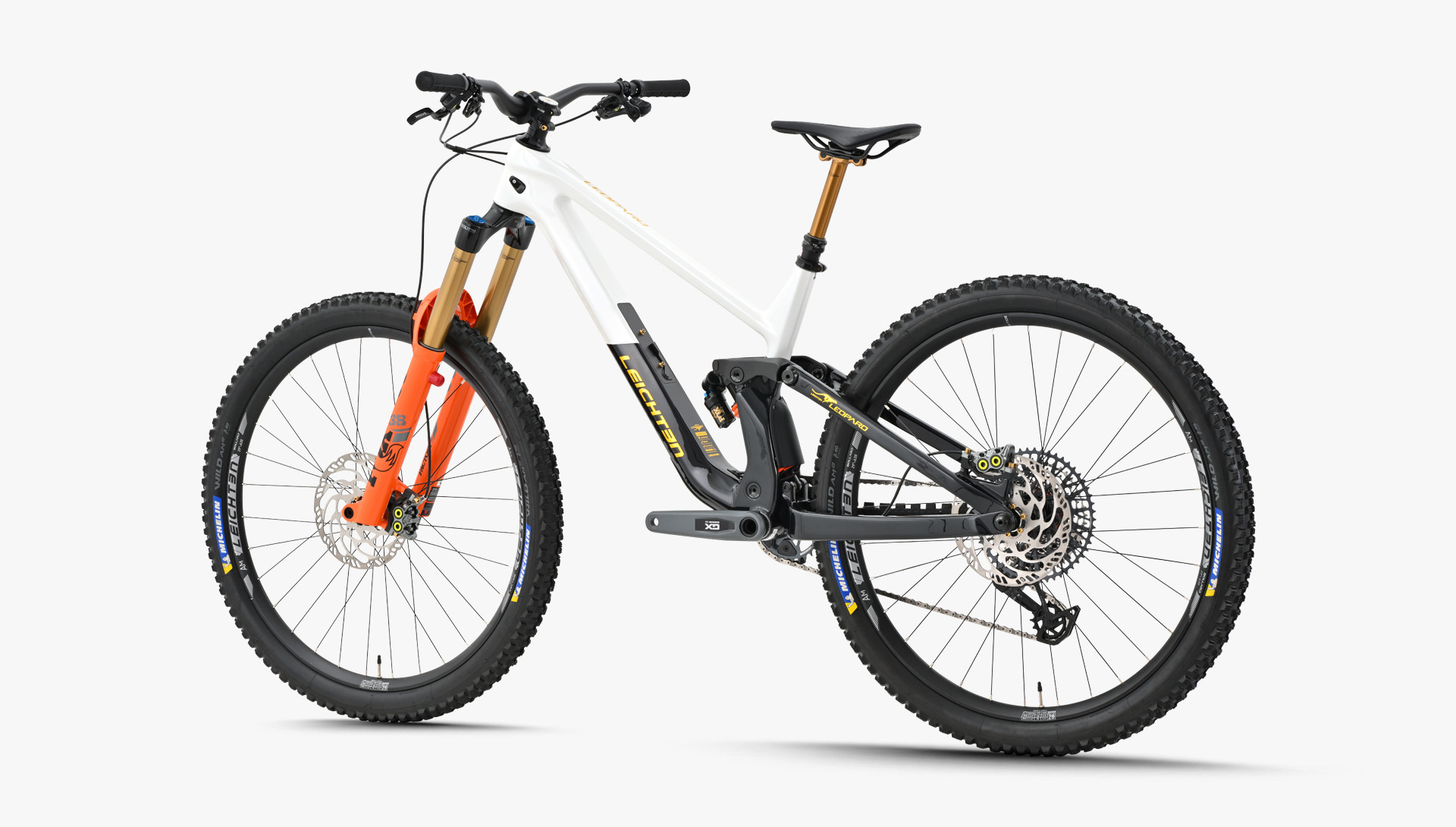

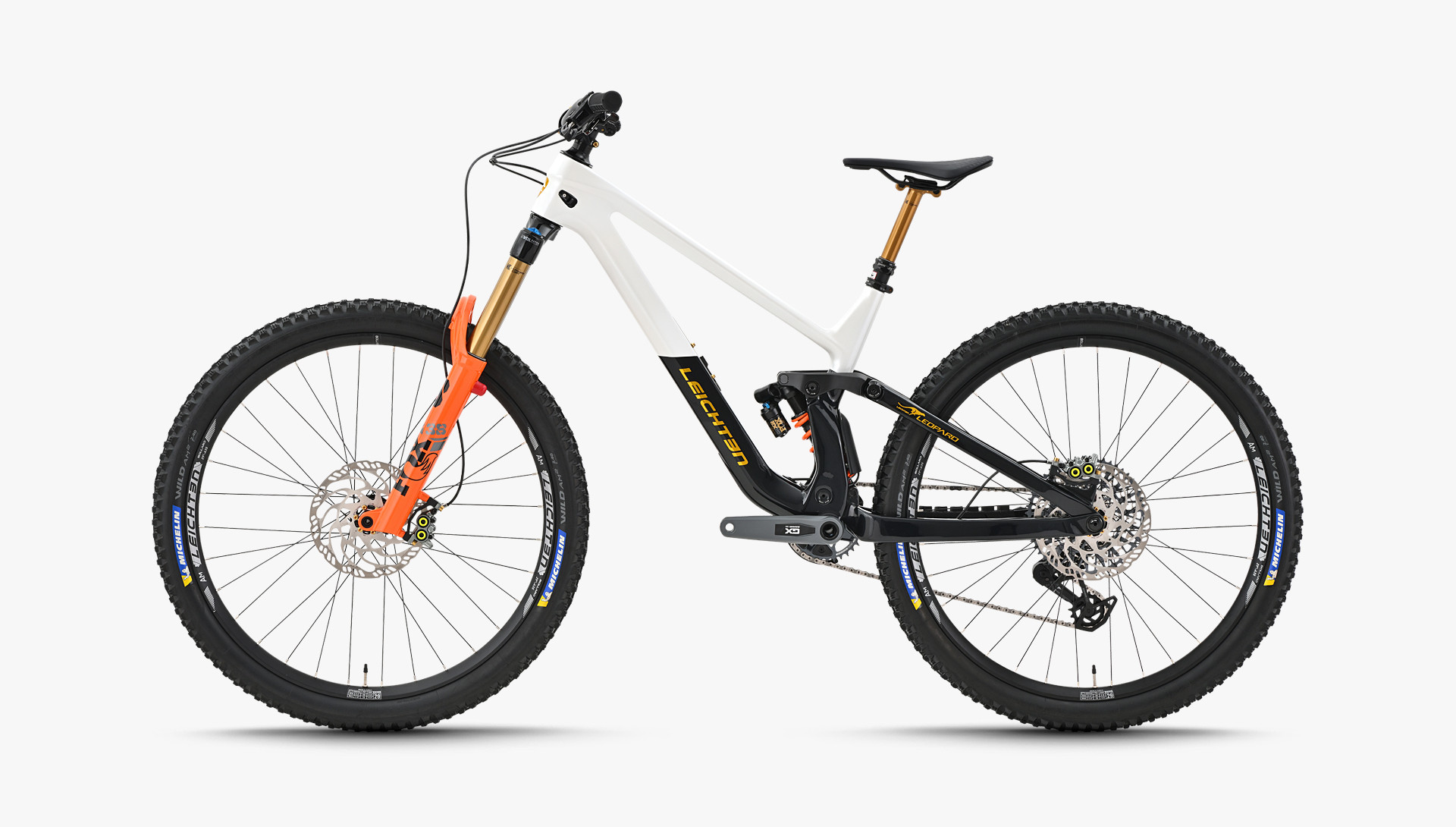

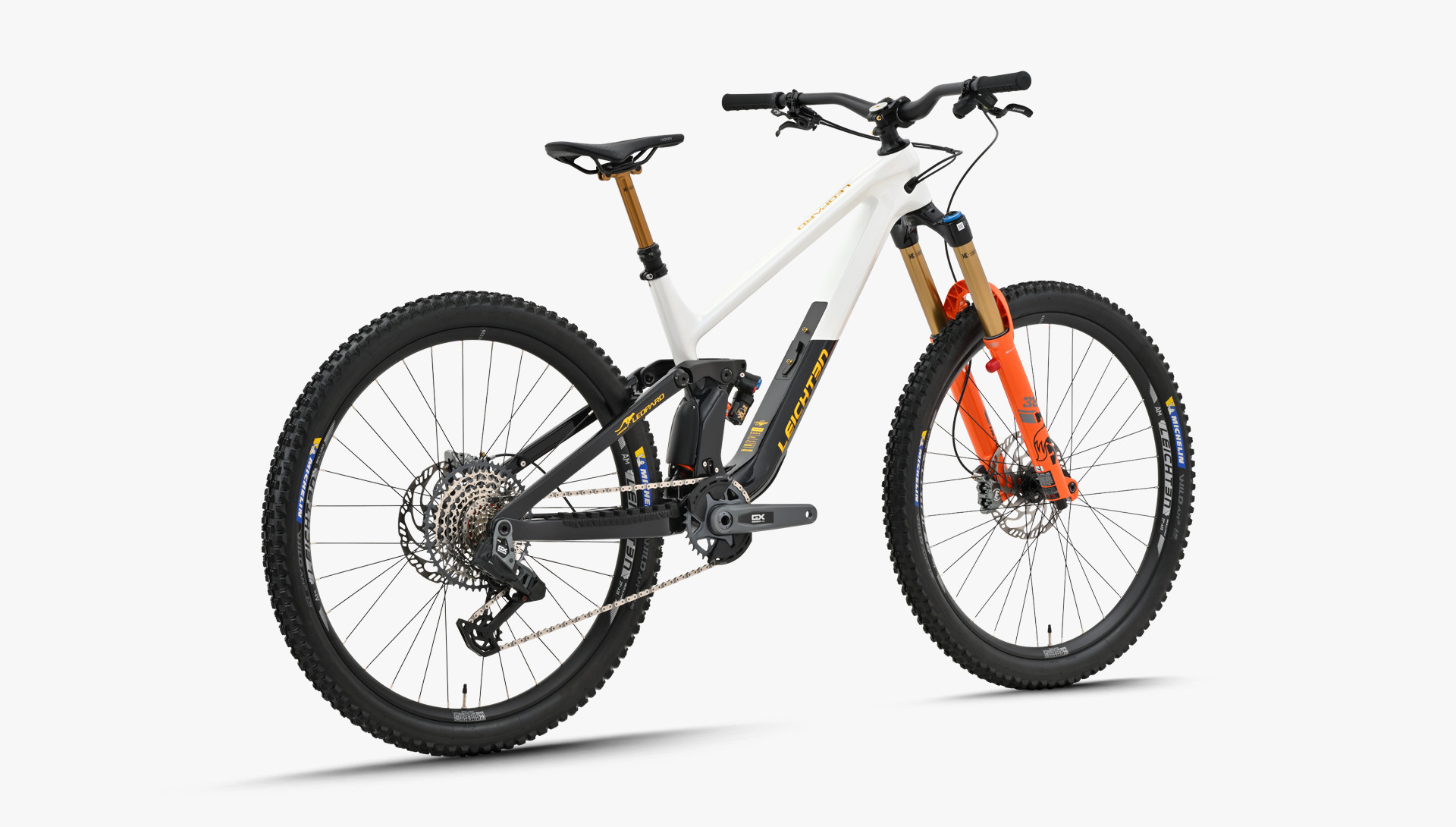

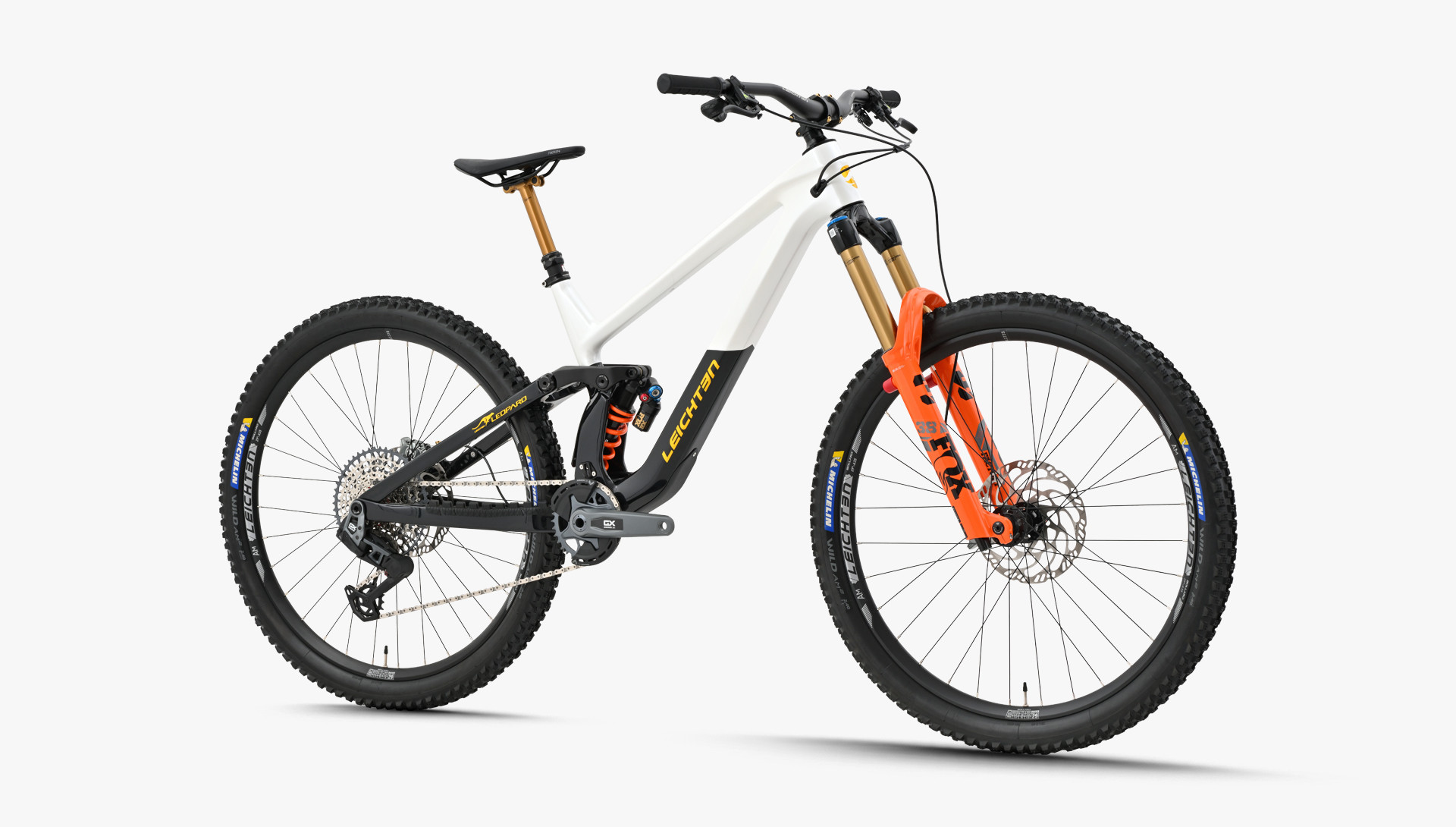

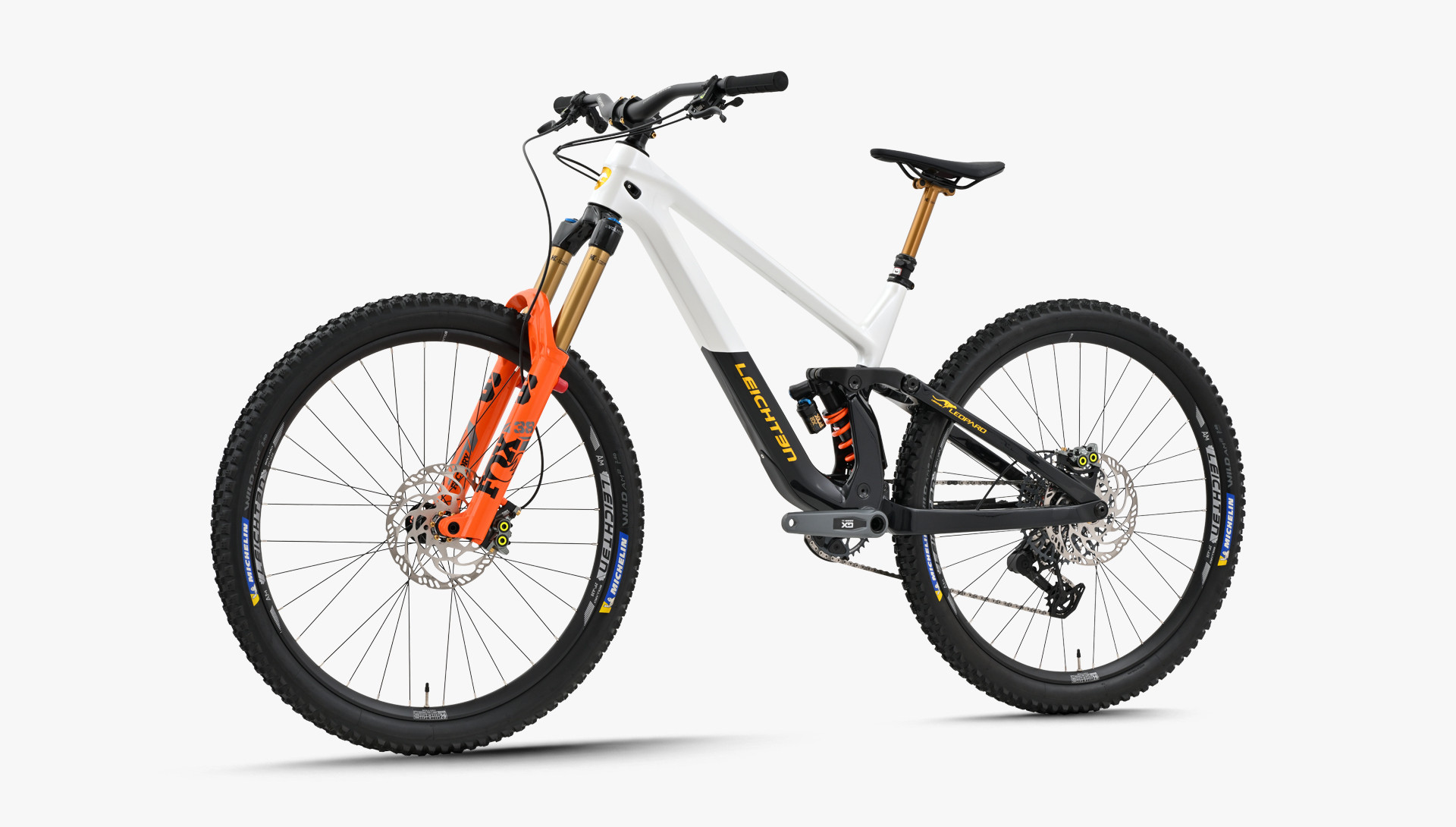

Made of top-quality carbon fiber, the Leopard is light and strong, ensuring stabilityand comfort during riding. With the efficient oil pressure disc brake system, thebraking is sensitive and the control is easy. lts soft-tail design absorbs vibrationsand improves smoothness, making it an ideal partner for adventure and competi.tion, whether on rugged mountain roads or flat tracks, where you can enjoy theultimate in control and exceptional endurance.
Bicycle Specification
- Entry Level: SRAM EAGLE-70
- Fork: FS DOMN GLD R 29”
- Travel: 180mm
- Middle-shock: RS DLXSEL230X65mm(10x25mm)
- Saddle: SelleRoyal SRX

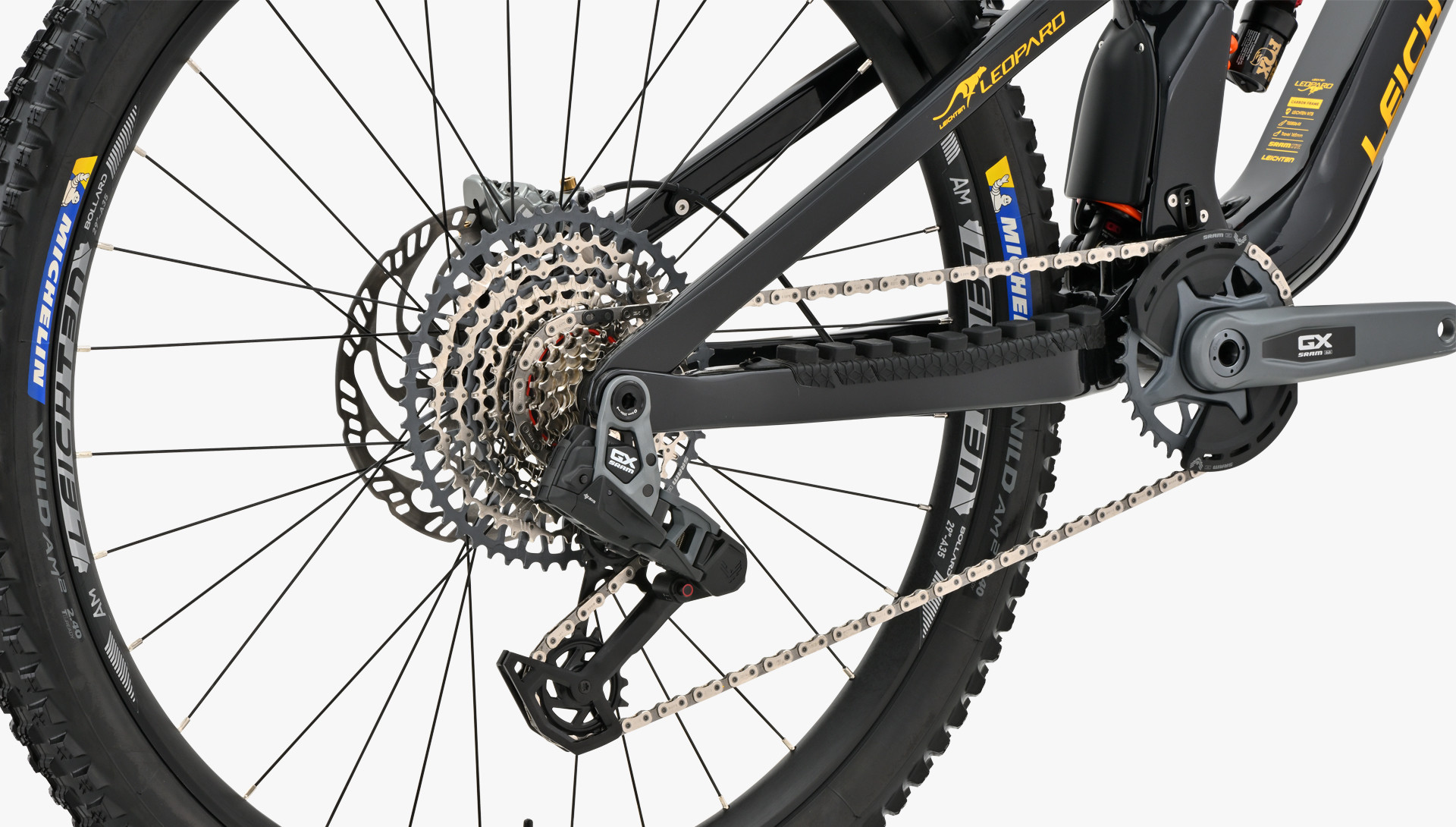

- Derailleur set: EAGLE-70 UDH 1x12
- Brake: Magura MT5 4 pistons.Disc 203mm
- Medium configuration: SRAM EAGLE-90
- Fork: FS DOMN GLD RC 29”
- Travel: 180mm
- Middle-shock: RS SDLXBSE230X65mm
- Saddle: FIZl:K
- Derailleur set: EAGLE-90 UDH 1x12
- Brake: Magura MT5 4 pistons.Disc 203mm
- High configuration: SRAM GX eTAP
- Fork: ZEB SEL 29Travel:180mm
- Middle-shock: RS SDLXS230X65mm
- Saddle: FIZI:K
- Derailleur set: SRAM EC GX AXS EAGLE ]x12
- Brake: Magura MT7 Pro 4 pistons.Disc 203mm
- Generalaccessories:
- Seatpost: KS p900-i31.6mm Remote Lever and Cable Kit
- Handlebar set: mountain style Stem 35mm 0° Handlebar 800mm
- Tire: MAXXIS Minion DHF M301 29x2.5
FRAME GEOMETRY
SIZE
CF
L
I
A
B
F
P
T
D
R
G
STACK
REACH
WB
S
400
590
162
75°
65°
757
450
100
20
51
570
606
428
1207
M
430
598
163
75°
65°
771
450
110
20
51
570
610
435
1220
L
480
640
167
75°
65°
811
450
120
20
51
570
624
473
1260
