LT-CM01

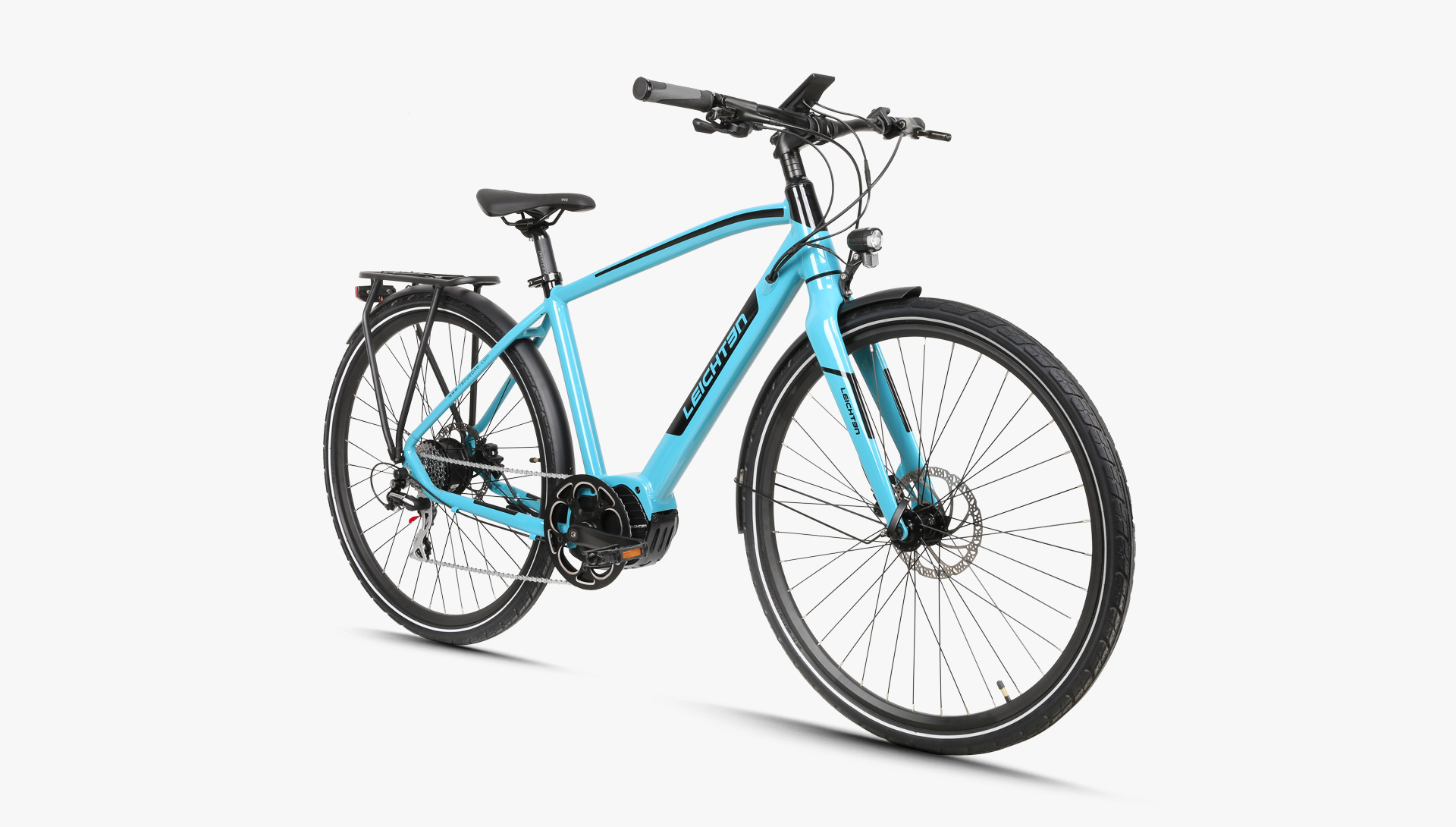

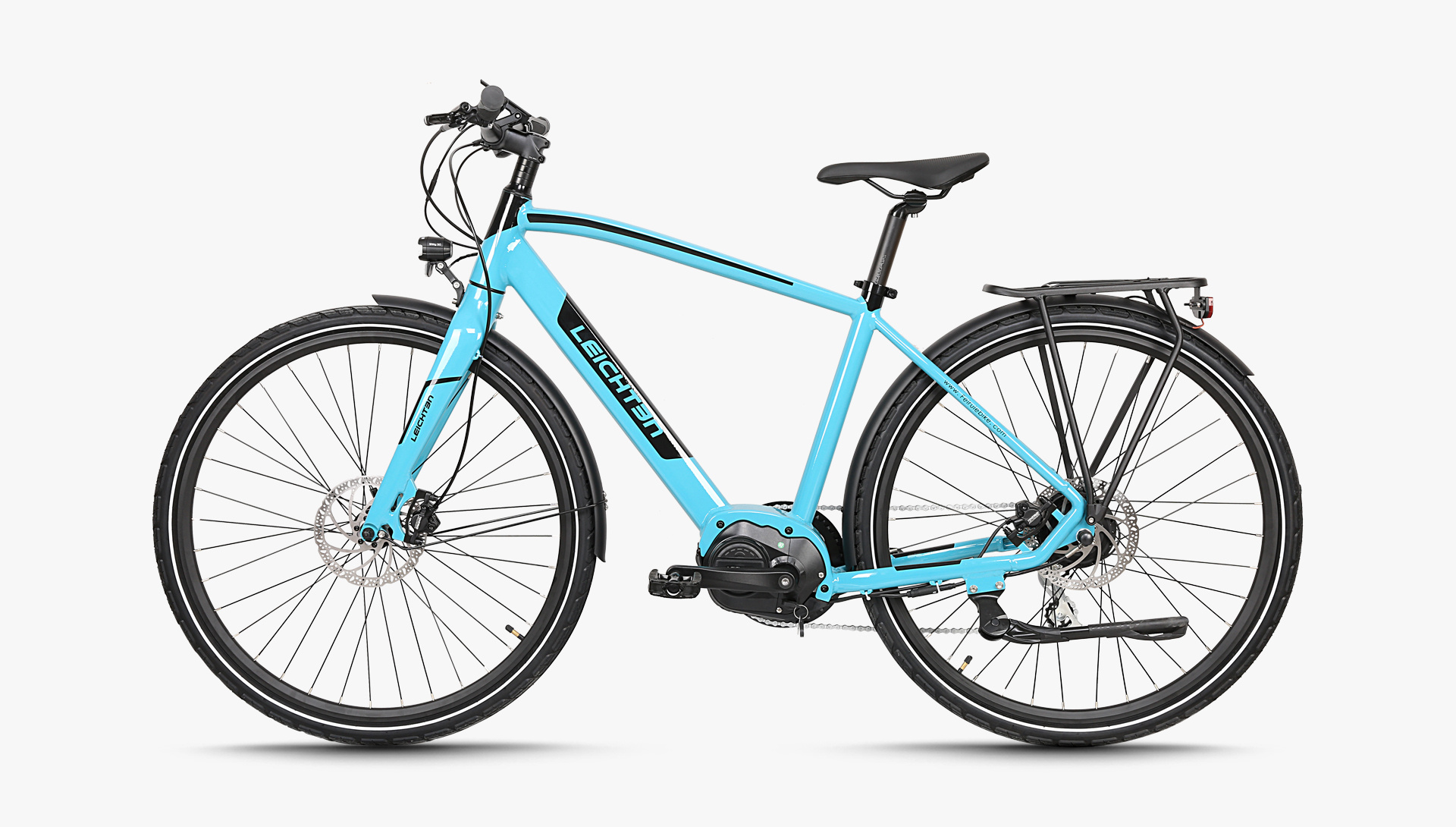

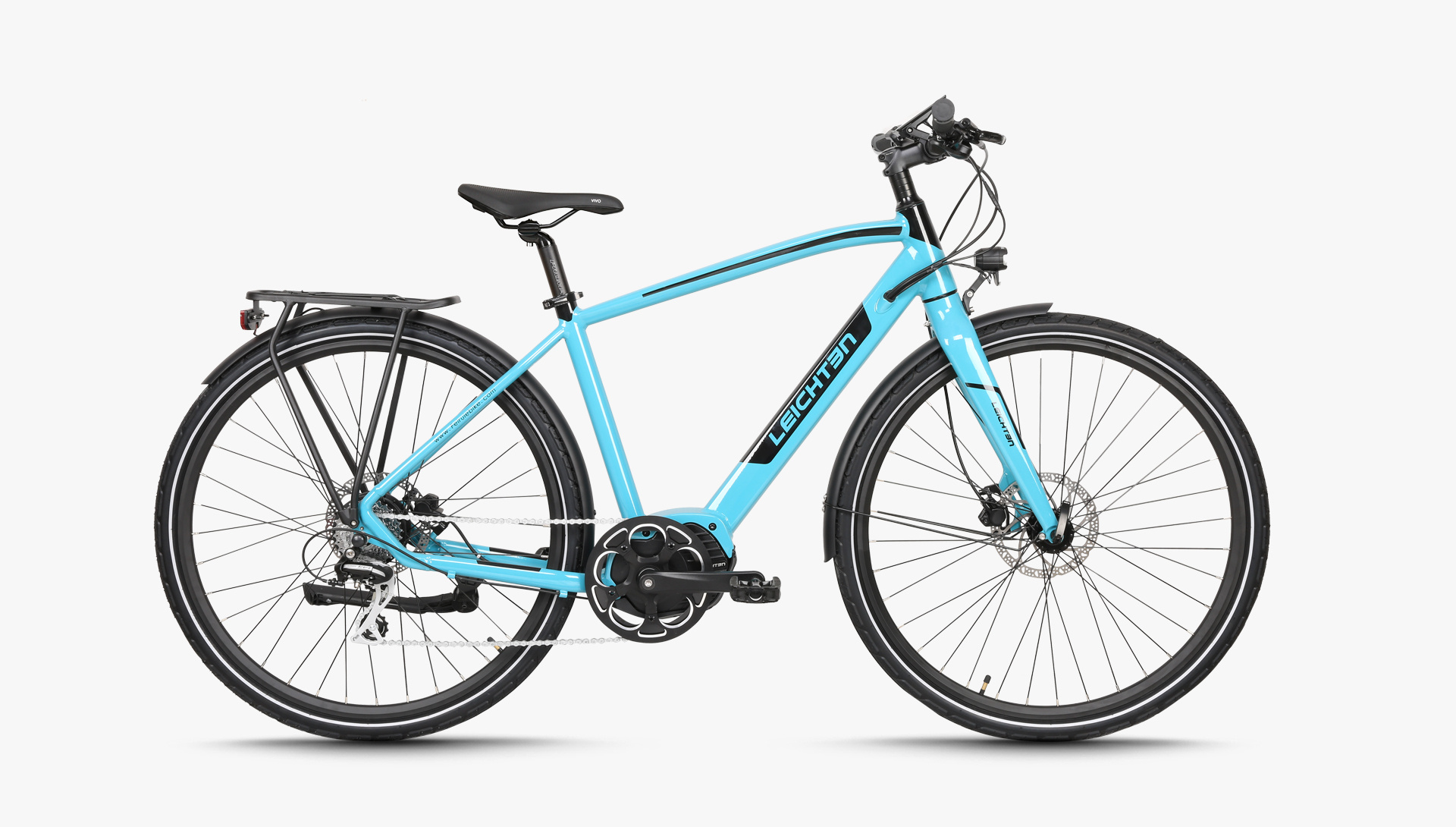

LT-CM01 is a city e-bike for men. It is drived by AKM rear motor and combined with Leichten middle battery knit. It has torque sensor and speed sensor for option. Max speed reachs to 25km/h, suitable for urban commuting.
Bicycle Specification
- Frame size: 700c*483mm
- Color: blue / green / purple/ OEM Color
- Material: Al-6061#
- Suspension: NA / Optional
- Max speed : 25km/h
- Tire: Front and rear 28*40C inch tire
- Brake: Front and rear disc / hydraulic brake
- Battery: 36V9.6AH / 345.6WH
- E-System: AKM Rear-Motor (250W)
- Ebike Size: 184*72*110CM
- Packing size: 145*26*80CM
- N.W / G.W: 21.5KG/ 27.5KG
- Battery : FR-30
- MAX Cells: 30PCS
- MAX capacity: 36V10.5Ah
- Charging Port : 3Pin
- USB port : available

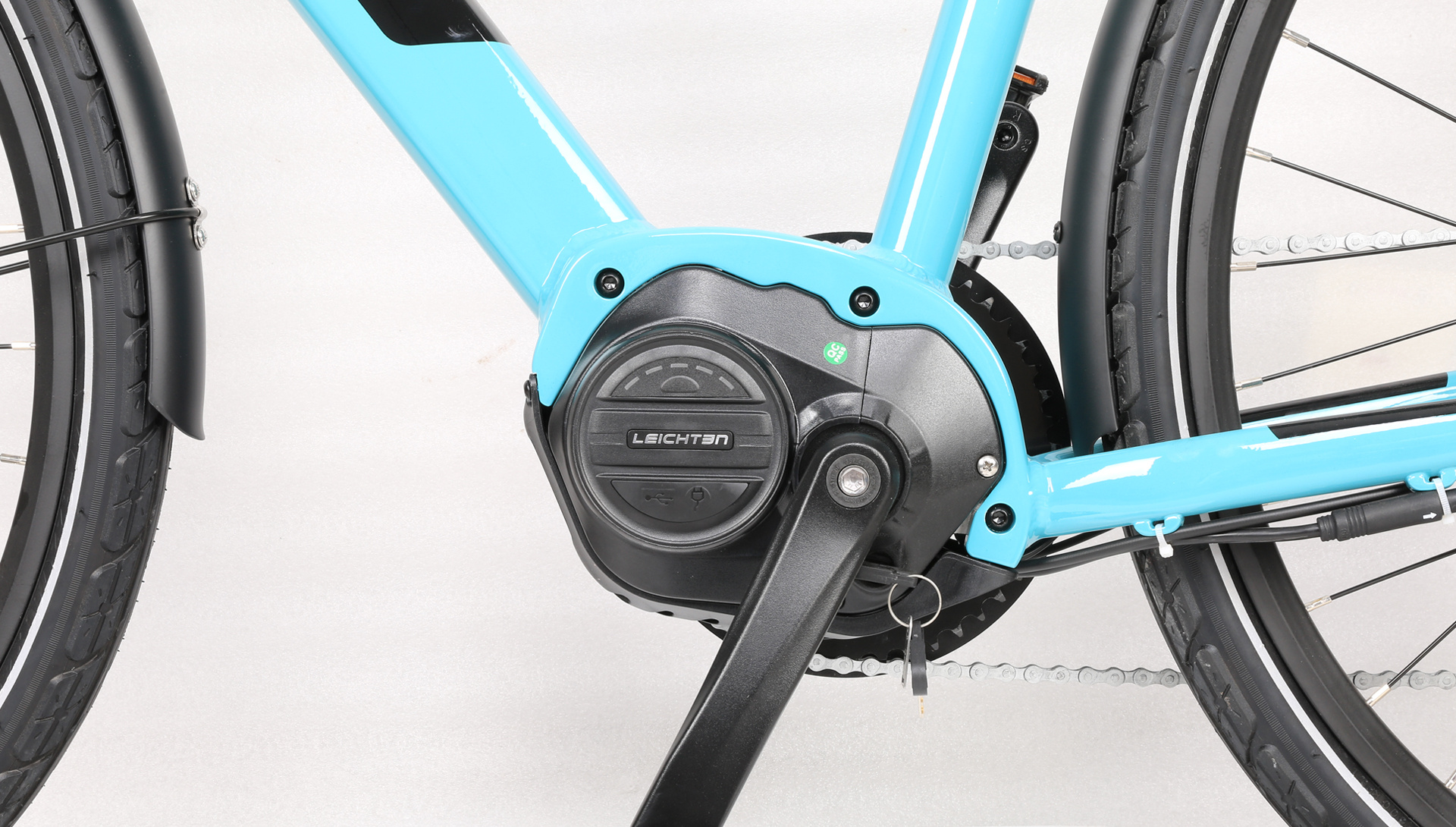

- Motor: AKM 100SX.R 36V250W
- Display : APT-860C
- Front Light : BUCHEL/Shiny50
- Rear Light : StVZO (K-1667)
- Brake : TEKTRO HD-M290
- Battery charger : 36V2A
- Front Hub : ￠12mm*135mm
- Rear Hub : AKM Rear Motor
- Fork : Aluminum alloy
- Rear Suspension : NA
- Tire : 700C*45c KENDA
- Mudguards : Aluminum alloy / Optional
- Shifting Lever : SL-M310, 7speed

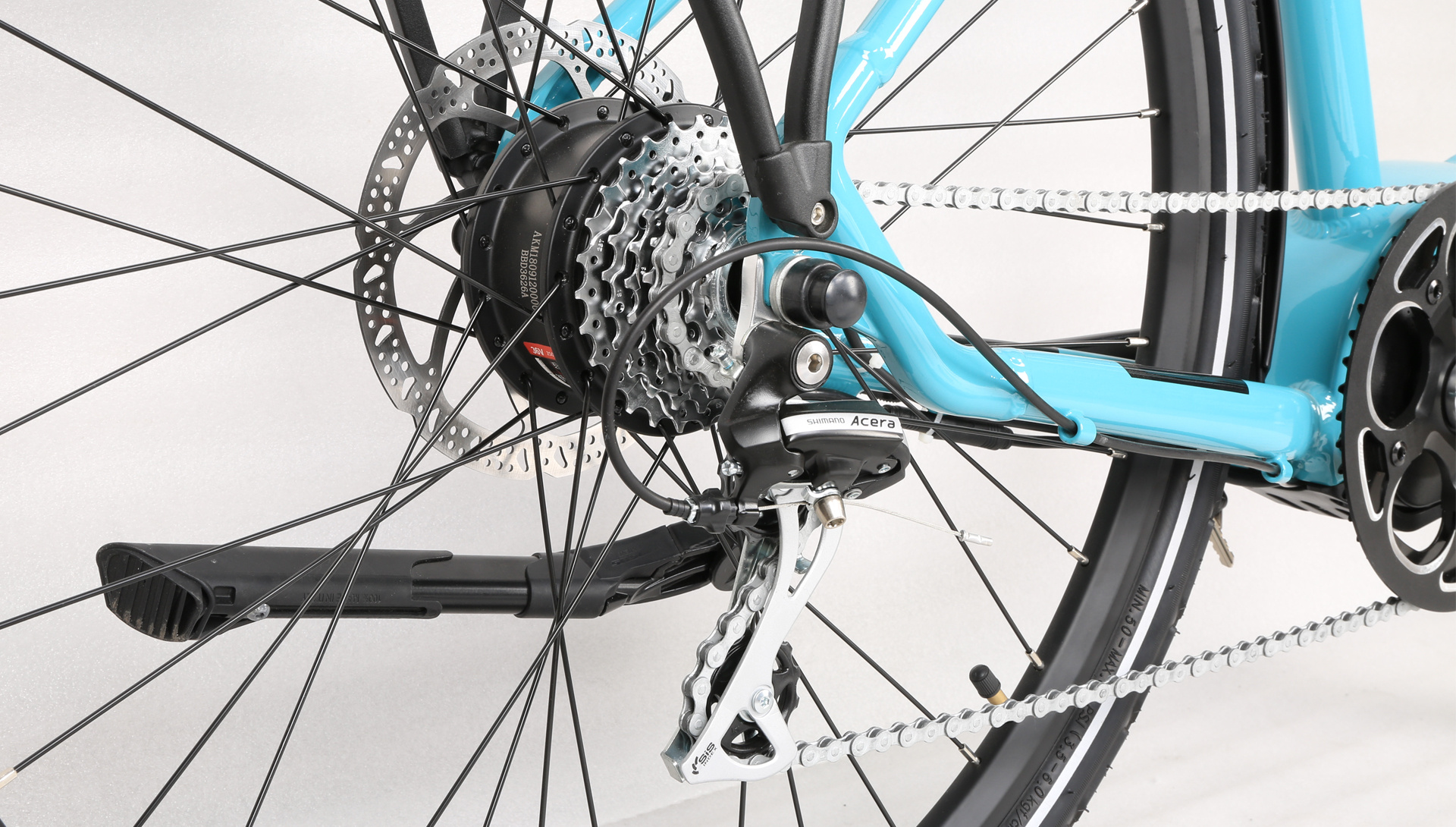

- Rear Derailleur : RD-M360-SGS
- Cassette Sprocket : CS-MF-TZ21, speed
- Chain : KMC
- Sprocket crank : Aluminum alloy 48T
- Saddle : SelleRoya
- Seat post : KS
- storage rack : Optional : storage rack : Optional
